VIH Laser Cutting Machine

The VIH laser cutting machine combines ultra-high power with precision cutting, featuring a flexible exchange worktable, aviation aluminum beam, and advanced control system for efficient, high-quality metal cutting.
Get Price
Send Email
VIH Laser Cutting Machine

Price range: $92,000.00 through $420,000.00

Send Email
Get a Quote
WhatsApp
Table of Contents

Product Description

The VIH laser cutting machine is an advanced, high-performance system designed for ultra-high power cutting of metal materials. Equipped with a precision laser cutting head and an ultra-high power laser generator (ranging from 20-60kW), it delivers exceptional cutting speeds and precision, enabling it to handle even the toughest materials, including thick stainless steel, carbon steel, and aluminum. The machine features a flexible exchange worktable, allowing for quick material changes and minimizing downtime in high-volume production environments. Its aviation aluminum beam ensures fast, accurate movements while maintaining structural integrity, enhancing cutting efficiency.
For added safety, the secure closed enclosure prevents exposure to the laser while also reducing noise during operation. The high-performance servo motor and high-precision linear guides work in tandem to provide smooth, precise movements, ensuring the highest cutting quality on complex and detailed designs. The advanced control system simplifies operation, offering real-time monitoring and seamless integration with production lines. The VIH laser cutting machine is the ideal solution for industries such as automotive, aerospace, and metal fabrication, providing cutting-edge technology for precise, high-volume metal cutting.

Product Configuration

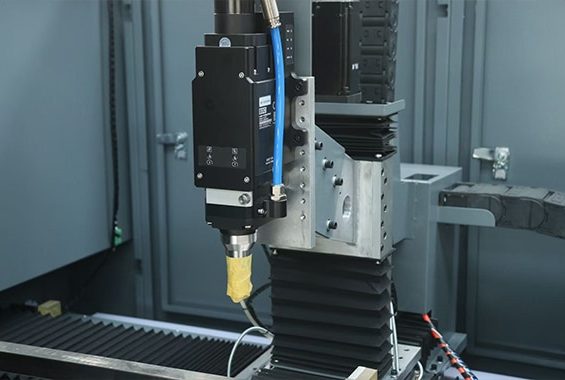

Precision Laser Cutting Head

Precision Laser Cutting Head

The precision laser cutting head ensures high-accuracy cutting with exceptional focus stability. Equipped with advanced sensors and automated focus adjustment, it adapts to varying material thicknesses, delivering consistent, clean cuts. Its robust design minimizes wear and tear, enhancing the overall performance and lifespan of the fiber laser cutting machine.

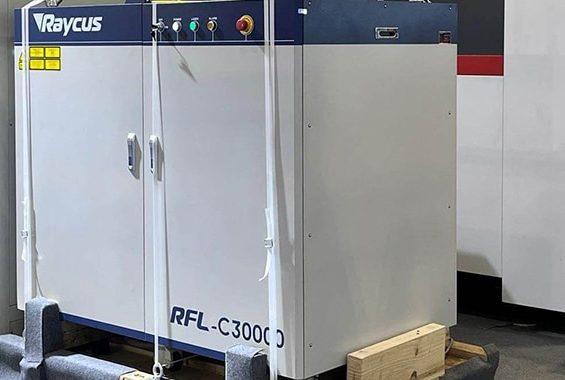

Ultra-High Power Laser Generator

Ultra-High Power Laser Generator

The ultra-high power laser generator (20-60kW) offers unmatched cutting capabilities for the most demanding applications. Delivering extraordinary power and precision, it easily processes thick metals with superior speed and accuracy. Designed for high-performance industries, this advanced generator ensures maximum efficiency, reduced cutting times, and exceptional reliability in heavy-duty operations.

Flexible Exchange Worktable

Flexible Exchange Worktable

The flexible exchange worktable enhances workflow efficiency with its quick and easy swap system, minimizing downtime between cutting jobs. Designed for seamless integration, it accommodates different material sizes and shapes, providing versatility and convenience. This feature allows for continuous operation, boosting productivity while maintaining high precision and cutting quality.

Aviation Aluminum Beam

Aviation Aluminum Beam

The aviation aluminum beam is lightweight yet incredibly strong, offering superior rigidity and durability. Engineered from high-grade aviation aluminum, it minimizes vibrations and ensures smooth, precise movement during cutting operations. This advanced material enhances overall machine performance, improving cutting speed and accuracy while maintaining long-term reliability in demanding industrial environments.

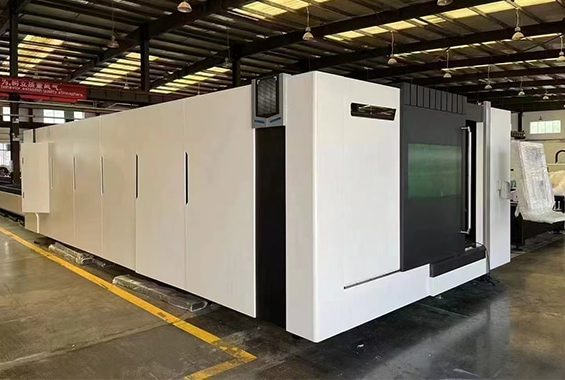

Secure Closed Enclosure

Secure Closed Enclosure

The secure closed enclosure provides a safe, controlled environment for the laser cutting process. Designed with high-quality materials, it effectively contains light and fumes, ensuring operator safety and compliance with regulations. This sturdy enclosure also minimizes noise and prevents contamination, promoting a clean, efficient, and secure working environment.

High-Performance Servo Motor

High-Performance Servo Motor

The high-performance servo motor delivers exceptional speed, precision, and reliability. Designed for seamless motion control, it ensures smooth and accurate cutting with minimal energy consumption. Its advanced technology allows for quick response times and superior positioning accuracy, making it an ideal choice for high-speed, high-precision fiber laser cutting applications.

High-Precision Linear Guides

High-Precision Linear Guides

The high-precision linear guides ensure smooth, accurate movement along the cutting axis, minimizing friction and wear. Engineered for exceptional stability and reliability, they provide consistent performance in high-speed operations. With superior alignment and minimal maintenance, these guides enhance cutting precision and contribute to the machine's overall longevity and efficiency.

Advanced Control System

Advanced Control System

The advanced control system integrates cutting-edge software with intuitive interfaces to deliver precise, real-time control over the laser cutting process. Featuring advanced algorithms and user-friendly operation, it ensures optimized cutting paths, enhanced efficiency, and consistent quality. This system boosts productivity while reducing errors, making it ideal for complex, high-speed applications.

Product Features

  • Precision Laser Cutting Head: The advanced cutting head ensures accurate, clean cuts on various metals, minimizing heat distortion and providing optimal results, even for intricate designs and thick materials.
  • Ultra-High Power Laser Generator (20-60kW): With an ultra-high power range, the machine is capable of cutting through the thickest metals with ease, providing high efficiency and exceptional cutting speeds for large-scale operations.
  • Flexible Exchange Worktable: This innovative worktable allows for quick material changes, reducing downtime between jobs. The flexibility enables continuous operation, improving throughput in high-volume production environments.
  • Aviation Aluminum Beam: The lightweight yet durable aviation aluminum beam enhances the speed and stability of the machine. It allows for rapid, accurate motion without sacrificing cutting precision, ensuring top-notch performance even in complex cutting tasks.
  • Secure Closed Enclosure: Designed with operator safety in mind, the closed enclosure prevents laser exposure while reducing noise during operation, creating a safer and more comfortable working environment.
  • High-Performance Servo Motors: The machine features high-performance servo motors that offer smooth and precise movements, ensuring fast, accurate cuts and reducing vibrations for improved overall cutting quality.
  • High-Precision Linear Guides: These guides provide smooth and accurate motion, ensuring superior cutting quality by minimizing backlash and maintaining precise positioning for each cut.
  • Advanced Control System: The sophisticated control system simplifies machine operation, offering real-time monitoring and intuitive controls. It provides seamless integration with existing production lines, optimizing efficiency and reducing errors.

Technical Parameters

Model VIH3015 VIH4020 VIH6020 VIH6025 VIH8025 VIH12025
Cutting Area 3000*1500mm 4000*2000mm 6000*2000mm 6000*2500mm 8000*2500mm 12000*2500mm
Laser Head Raytools, WSX, BOCI, Osprey
Laser Power 20000-50000W
Laser Generator Raycus, MAX, IPG
Control System CypCut, Weihong
Servo Motor And Driver Fuji, Delta, Yaskawa
Guide Rails Taiwan Linear Rails
Reducer Japan Shinbo, France Mortori
Max. Acceleration 1.8G 1.7G 1.8G
Max. Linkage Speed 160m/min
Z Axis Travel 330mm
Positioning Accuracy 0.05mm
Repositioning Accuracy 0.03mm

Product Applications

The VIH laser cutting machine is engineered for heavy-duty, high-precision cutting of a wide range of metals, making it ideal for industries requiring fast, accurate, and efficient cutting of thick materials. With its ultra-high power laser generator and precision laser cutting head, the VIH laser cutting machine excels in applications such as automotive manufacturing, aerospace, and shipbuilding, where cutting through tough metals like stainless steel, carbon steel, and aluminum is required.
The flexible exchange worktable allows for continuous operation, making it perfect for high-volume production environments. Whether it’s structural steel cutting, metal fabrication, or prototype development, the VIH laser cutting machine provides consistent, high-quality results. Its advanced features also make it suitable for energy generation, construction machinery, and industrial equipment manufacturing, where precision and durability are paramount. This machine is the optimal choice for businesses seeking high-performance cutting solutions in industries demanding robust technology and exceptional cut quality.

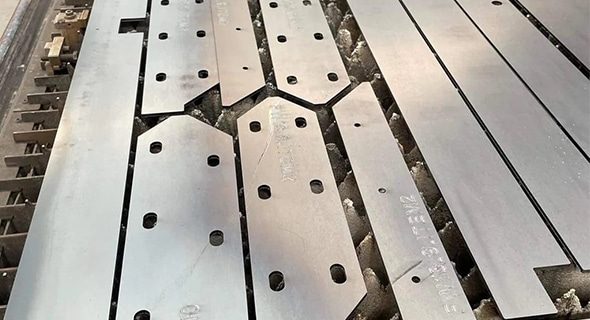

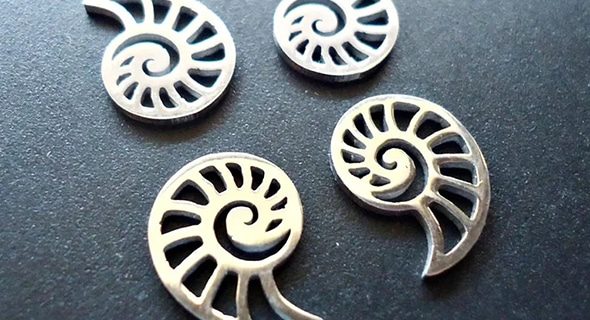

Sheet Fiber Laser Cutting Sample
Sheet Fiber Laser Cutting Sample
Sheet Fiber Laser Cutting Sample
Sheet Fiber Laser Cutting Sample
