Explore Our Range of Laser Cutting Machines
FIber Laser Cutting Machines
-
VIF-A Laser Cutting Machine
$12,500.00 – $34,000.00 Select options This product has multiple variants. The options may be chosen on the product page -
VIF Laser Cutting Machine
$17,300.00 – $70,000.00 Select options This product has multiple variants. The options may be chosen on the product page -
VIE Laser Cutting Machine
$21,800.00 – $166,500.00 Select options This product has multiple variants. The options may be chosen on the product page -
VIB Laser Cutting Machine
$21,300.00 – $166,000.00 Select options This product has multiple variants. The options may be chosen on the product page -
VIP Laser Cutting Machine
$25,800.00 – $170,500.00 Select options This product has multiple variants. The options may be chosen on the product page -
VIH Laser Cutting Machine
$92,000.00 – $420,000.00 Select options This product has multiple variants. The options may be chosen on the product page -
VIF-T Laser Cutting Machine
$34,300.00 – $179,000.00 Select options This product has multiple variants. The options may be chosen on the product page -
VIE-T Laser Cutting Machine
$43,300.00 – $188,000.00 Select options This product has multiple variants. The options may be chosen on the product page -
VIB-T Laser Cutting Machine
$42,300.00 – $187,000.00 Select options This product has multiple variants. The options may be chosen on the product page -
VIP-T Laser Cutting Machine
$68,800.00 – $213,500.00 Select options This product has multiple variants. The options may be chosen on the product page -
VIT Laser Cutting Machine
$24,300.00 – $167,500.00 Select options This product has multiple variants. The options may be chosen on the product page -
VIT-A Laser Cutting Machine
$79,300.00 – $222,500.00 Select options This product has multiple variants. The options may be chosen on the product page
CO2 Laser Cutting Machines
-
VIC Laser Cutting Machine
$3,000.00 – $7,500.00 Select options This product has multiple variants. The options may be chosen on the product page -
VIC-C Laser Cutting Machine
$4,500.00 – $9,000.00 Select options This product has multiple variants. The options may be chosen on the product page -
VIC-E Laser Cutting Machine
$3,500.00 – $8,000.00 Select options This product has multiple variants. The options may be chosen on the product page -
VIC-F Laser Cutting Machine
$3,800.00 – $8,300.00 Select options This product has multiple variants. The options may be chosen on the product page -
VIC-D Laser Cutting Machine
$3,600.00 – $8,100.00 Select options This product has multiple variants. The options may be chosen on the product page -
VIC-A Laser Cutting Machine
$7,300.00 – $12,000.00 Select options This product has multiple variants. The options may be chosen on the product page
Materials that can be processed
| Fiber Laser Cutting Machines |
|---|
| Carbon Steel |
| Stainless Steel |
| Aluminum |
| Brass |
| Copper |
| Titanium |
| Silver |
| Gold |
| CO2 Laser Cutting Machines |
|---|
| Wood |
| Plastics |
| Leather |
| Glass |
| Cardboard |
| Textiles |
| Rubber |
| Foam |
Power that can be selected
| Fiber Laser Cutting Machines |
|---|
| 1500W |
| 2000W |
| 3000W |
| 4000W |
| 6000W |
| 12000W |
| 20000W |
| 30000W |
| 40000W |
| 60000W |
| CO2 Laser Cutting Machines |
|---|
| 80W |
| 90W |
| 100W |
| 130W |
| 150W |
| 180W |
| 220W |
| 300W |
| 500W |
| 600W |
Support and Services
Expert Consultation
Our knowledgeable team is available to assist you in selecting the right laser-cutting machine for your specific needs and applications.
Installation and Training
We provide professional installation services and thorough training to ensure your team can operate the machines safely and efficiently.
Technical Support
Our experienced technicians are available to offer prompt and reliable technical support, troubleshooting, and maintenance advice.
Warranty and Repairs
All machines come with a full warranty. If you have any issues, our repair services will get you back up and running quickly.
Software Updates
Stay ahead with the latest software updates and enhancements to ensure your machines are operating with the latest features and improvements.
Spare Parts and Consumables
We supply a wide range of genuine spare parts and consumables to keep your machines running smoothly and minimize downtime.
Preventive Maintenance
Regular preventive maintenance services help extend the lifespan of your equipment and maintain optimal performance.
Online Resources
Access a wealth of resources, including user manuals, video tutorials, and FAQs, available on our website to assist you anytime.
Why choose Victory Industrial
Advanced Technology
We leverage the latest advancements in laser cutting technology to deliver machines that offer superior precision, speed, and efficiency.
Comprehensive Range
Our extensive range of fiber and CO2 laser cutting machines caters to diverse applications, from small-scale operations to large industrial projects.
Quality Assurance
Each machine is built to the highest standards of quality and reliability, ensuring consistent performance and durability.
Expertise and Experience
With years of industry experience, our team of experts provides unparalleled knowledge and support, helping you choose the right machine and optimize its use.
Custom Solutions
We understand that every business has unique needs. That’s why we offer customized solutions tailored to meet your specific requirements.
Exceptional Support
Our commitment to customer satisfaction includes comprehensive support services, from consultation and training to maintenance and technical assistance.
Sustainability Commitment
We prioritize environmentally friendly practices and energy-efficient technologies, helping you reduce your carbon footprint while achieving optimal performance.
Competitive Pricing
Our laser cutting machines offer exceptional value for money, combining high performance with affordability to suit various budget requirements.
Why choose Victory Industrial
Related Articles
Laser Cutting vs Plasma Cutting: Which Is Better
When people come to us with projects, a question we often hear is: “Should I use laser cutting or plasma
FAQ
How Much Do Laser-Cutting Machines Cost?
What Is The Main Hazard With Laser Cutting Machines?
The main hazard associated with laser cutting machines is the risk of exposure to the laser beam itself. Here are some specific hazards:
- Laser Beam Exposure: Direct or reflected laser beams can cause serious eye injuries, including permanent vision loss. Laser beams can penetrate the cornea and cause damage to the retina. High-powered lasers can cause severe burns if the skin is exposed to the beam.
- Fire Hazards: The intense heat generated by the laser can ignite flammable materials in the cutting area, leading to fires.
- Fume and Gas Emissions: Cutting certain materials, such as plastics and metals, can release toxic fumes and gases that can be harmful if inhaled. Proper ventilation and fume extraction systems are essential.
- Electrical Hazards: Laser cutting machines operate with high-voltage power supplies, which can pose a risk of electrical shock if not handled properly.
- Mechanical Hazards: The moving parts of the laser cutting machine, such as the laser head and the beam, can pose a risk of injury if proper safety measures are not followed.
- Optical Radiation: Reflections from the laser beam can be hazardous. Diffuse reflections from the material surface are generally less intense, but specular (mirror-like) reflections can be just as dangerous as direct beam exposure.
By understanding these hazards and implementing proper safety protocols, the risks associated with laser-cutting machines can be significantly reduced.
What Materials Cannot Be Cut on Laser Cutting Machines?
Laser-cutting machines are versatile and can cut a wide range of materials, but certain materials are not suitable for laser cutting due to safety concerns or the nature of the material itself. Here are some materials that should not be cut on laser-cutting machines:
- PVC (Polyvinyl Chloride): Cutting PVC releases chlorine gas, which is highly toxic and corrosive, posing severe health risks and damaging the machine.
- ABS (Acrylonitrile Butadiene Styrene): When cut, ABS emits cyanide gas, which is extremely hazardous to health.
- Polycarbonate (PC): Polycarbonate does not cut well with lasers. It tends to melt and char, releasing toxic fumes and leaving an unsatisfactory finish.
- Fiberglass: Fiberglass contains epoxy resins that can release hazardous fumes when cut with a laser. It also tends to melt rather than cut cleanly.
- Teflon (PTFE) and Other Fluorinated Plastics: These materials release toxic and corrosive fumes, such as fluorine gas, which are dangerous to both the operator and the laser-cutting machine.
- Certain Foams: Some foams can catch fire easily or release toxic gases when cut with a laser.
- Polypropylene Foam (PP): Similar to other foams, it can catch fire and release harmful fumes.
- Coated Carbon Fiber: Carbon fiber itself can be cut with a laser, but if it is coated with resins or other materials, cutting it can release dangerous fumes.
- Materials Containing Chlorine or Bromine (Halogenated Plastics): These materials can release toxic and corrosive gases when cut with a laser.
- High-Reflectivity Metals: Metals like copper and brass have high reflectivity, which can reflect the laser beam into the machine, potentially damaging the laser optics and reducing cutting efficiency.
By avoiding these materials and following proper safety protocols, the risks associated with laser-cutting operations can be minimized.
How Do I Choose Laser-Cutting Machines?
Choosing the right laser-cutting machine involves evaluating several factors based on your specific needs and applications. Here are the key considerations to help you make an informed decision:
- Material Type and Thickness
- Material Compatibility: Determine which materials you will be cutting (e.g., metals, plastics, wood, etc.). Different lasers are suitable for different materials.
- Thickness: Check the maximum thickness the machine can handle for your materials.
- Laser Type
- CO2 Lasers: Suitable for non-metal materials like wood, acrylic, plastic, and fabrics. Generally more affordable but limited in cutting metals.
- Fiber Lasers: Ideal for cutting metals (steel, aluminum, brass, copper). They offer higher precision and faster cutting speeds for metals.
- Power Requirements
- Laser Power: Higher-power lasers cut thicker materials and do so faster. Common power levels range from 30W to over 10kW, depending on the material and thickness.
- Electrical Requirements: Ensure your facility can support the machine’s power requirements.
- Cutting Area and Size
- Work Area Dimensions: Choose a machine with a cutting bed size that accommodates the largest pieces you plan to cut.
- Footprint: Consider the available space in your workshop for the machine.
- Precision and Accuracy
- Tolerance Levels: Evaluate the precision needed for your projects. High-precision machines are essential for detailed and intricate designs.
- Repeatability: Ensure the machine can consistently produce accurate cuts.
- Speed and Efficiency
- Cutting Speed: Higher cutting speeds increase productivity. Assess the machine’s speed for the materials you plan to cut.
- Automation: Look for features like automatic loading and unloading, which can improve efficiency.
- Software and Controls
- Ease of Use: User-friendly software and controls can reduce the learning curve and improve workflow.
- Compatibility: Ensure the software is compatible with your design files (e.g., DXF, DWG, SVG).
- Maintenance and Support
- Reliability: Choose a machine from a reputable manufacturer known for reliable equipment.
- Support and Warranty: Check the availability of technical support, training, and warranty services.
- Cost and Budget
- Initial Cost: Compare the prices of different machines within your budget. Remember that higher initial costs might be offset by better performance and lower operating costs.
- Operating Costs: Consider ongoing expenses such as power consumption, maintenance, and replacement parts.
- Safety Features
- Enclosures and Guards: Ensure the machine has adequate safety features to protect operators from laser exposure and other hazards.
- Fume Extraction: Proper ventilation and fume extraction systems are crucial for safe operation.
- Application-Specific Requirements
- Special Features: Depending on your applications, look for machines with specific features like rotary attachments for tube cutting, advanced cooling systems, or specific cutting head types.
Selecting the right laser-cutting machine involves balancing your specific requirements with the capabilities of the machine. By considering material compatibility, laser type, power, precision, speed, software, maintenance, cost, safety, and application-specific needs, you can choose a machine that best fits your production goals.
How Precise Are Laser Cutting Machines?
Laser-cutting machines are renowned for their high precision and accuracy, making them ideal for applications requiring detailed and intricate cuts. Here are some factors that contribute to their precision and the typical levels of accuracy you can expect:
- Precision Factors
- Laser Beam Width: The laser beam can be focused to a very small diameter, often less than 0.1 mm, allowing for extremely fine cuts.
- Cutting Tolerances: High-quality laser cutting machines can achieve tolerances as tight as ±0.1 mm or better, depending on the material and thickness.
- Positioning Accuracy: Advanced laser cutters have precise motion systems, often with positioning accuracies of ±0.03 mm or better.
- Repeatability: The ability to produce consistent results over multiple runs is crucial. High-end machines offer repeatability within ±0.02 mm.
- Material and Thickness Impact
- Material Type: Different materials can affect precision. Metals generally yield higher precision cuts compared to some plastics or organic materials.
- Thickness: Thinner materials can be cut with higher precision than thicker ones. As material thickness increases, achieving tight tolerances becomes more challenging.
- Quality of the Laser and Optics
- Laser Source Quality: The stability and quality of the laser source (e.g., fiber, or CO2) significantly influence precision. Fiber lasers, in particular, are known for their high precision in cutting metals.
- Optics and Focus: High-quality optics and a precise focusing mechanism help maintain accuracy. Advanced machines often have automated focus adjustments to maintain optimal cutting conditions.
- Machine Design and Build
- Mechanical Stability: The rigidity and stability of the machine frame affect precision. High-end machines are built with robust frames to minimize vibrations and mechanical deflections.
- Motion Control Systems: Precision ball screws, linear guides, and servo motors contribute to accurate and smooth movements, enhancing cutting precision.
- Environmental Factors
- Temperature and Humidity: Fluctuations in temperature and humidity can affect machine components and cutting precision. Climate-controlled environments help maintain consistent performance.
- Maintenance: Regular maintenance of the machine, including cleaning lenses and mirrors, ensures consistent precision.
- Software and Control Systems
- Advanced Software: High-quality control software can optimize cutting paths, reduce errors, and enhance precision.
- Real-Time Monitoring: Some machines feature real-time monitoring and feedback systems that adjust parameters on the fly to maintain precision.
Laser cutting machines are highly precise, and capable of achieving tight tolerances and fine details, especially when cutting metals and other suitable materials. The precision is influenced by the quality of the laser, optics, machine design, material type, and environmental factors. Advanced laser cutters with robust construction and sophisticated control systems offer the highest levels of precision, making them invaluable in industries requiring detailed and accurate cuts.
What Is The Expected Lifespan of Laser Cutting Machines?
The lifespan of a laser cutting machine depends on several factors, including the type of laser, the quality of the components, the intensity of use, and the maintenance practices followed. Here is a detailed overview of the expected lifespan for different types of laser-cutting machines:
- Type of Laser Source
- Fiber Lasers: Fiber lasers generally have a much longer lifespan, often exceeding 100,000 hours. The solid-state nature of fiber lasers and the robustness of their components contribute to their extended operational life.
- CO2 Lasers: CO2 laser tubes typically have a lifespan of 2,000 to 10,000 hours of operation, depending on the quality of the tube and the operating conditions. Higher-end CO2 lasers with metal RF (radio frequency) tubes tend to have longer lifespans compared to glass tubes.
- Quality of Components
- Laser Source: High-quality laser sources from reputable manufacturers tend to last longer and perform more reliably.
- Optics: The lifespan of the optics (lenses and mirrors) can vary. High-quality optics may last for several years if properly maintained, but they may require periodic cleaning and replacement.
- Mechanical Components: The motion system, including motors, linear guides, and screws, can last for many years with regular maintenance. High-quality mechanical components from established brands tend to have longer lifespans.
- Usage Intensity
- Heavy Use: Machines used in high-volume production environments may experience more wear and tear, potentially reducing their lifespan.
- Moderate to Light Use: Machines used less intensively or for specialized applications may last longer due to reduced operational stress.
- Maintenance Practices
- Regular Maintenance: Proper and regular maintenance can significantly extend the lifespan of a laser cutting machine. This includes cleaning the optics, lubricating moving parts, and ensuring proper cooling.
- Preventive Maintenance: Adhering to a preventive maintenance schedule recommended by the manufacturer can prevent unexpected failures and extend the machine’s operational life.
- Environmental Factors
- Operating Environment: A clean, climate-controlled environment can help prolong the lifespan of a laser cutting machine by reducing the risk of dust, debris, and temperature fluctuations affecting the components.
- Cooling Systems: An effective cooling system can help keep the laser source and other critical components within an optimal temperature range, thereby extending their service life.
The expected lifespan of laser cutting machines varies based on the type of laser, quality of components, usage intensity, maintenance practices, and environmental factors. Fiber lasers generally offer the longest lifespan, followed by CO2 lasers. Regular maintenance and proper usage are key to maximizing the operational life of these machines.
What Support Is Available With The Purchase of Laser Cutting Machines?
When purchasing a laser cutting machine, comprehensive support options are typically provided to ensure smooth installation, operation, and maintenance. Here are the key types of support that are usually available:
- Installation Support
- On-Site Installation: Victory Industry offers on-site installation services where trained technicians set up the machine, ensuring it is correctly configured and operational.
- Remote Assistance: For less complex installations, remote assistance via video calls or detailed guides may be provided.
- Initial Training
- On-Site Training: Technicians provide hands-on training at your location, covering machine operation, safety procedures, and basic troubleshooting.
- Classroom Training: Victory Industry offers classroom-style training sessions at their facilities, providing in-depth knowledge about machine operation and maintenance.
- Technical Support
- Phone Support: Access to technical support via phone to assist with troubleshooting, operational questions, and problem-solving.
- Email Support: Victory Industry often provides email support for detailed inquiries and documentation requests.
- On-Site Support
- Service Technicians: For complex issues, Victory Industry can dispatch service technicians to diagnose and repair problems, perform maintenance, or upgrade components.
- Preventive Maintenance Visits: Regular maintenance visits by trained technicians to ensure optimal machine performance and prevent potential issues.
- Software Support
- Installation and Setup: Assistance with the installation and setup of the machine’s control software.
- Software Updates: Access to regular software updates that improve functionality, add features, and fix bugs.
- Training on Software Use: Dedicated training sessions for the software aspects of the machine, including design software, cutting parameters, and optimization techniques.
The support provided with the purchase of a laser cutting machine includes comprehensive installation and training, robust technical and software support, detailed documentation and resources, extended warranties, service contracts, and access to spare parts and consumables. These support options ensure that users can operate their machines efficiently, maintain them properly, and resolve any issues that arise promptly.
How Much Power Do Laser Cutting Machines Consume?
The power consumption of laser-cutting machines varies based on several factors, including the type of laser, the power of the laser source, the machine’s operational settings, and the specific application. Here’s a detailed overview of the power consumption you can expect for different types of laser-cutting machines:
- CO2 Laser Cutting Machines
- Laser Power: CO2 lasers typically range from 40W to several kilowatts (kW).
- Power Consumption: A small CO2 laser cutting machine (e.g., 40W to 600W) may consume around 0.5 to 5 kW of electrical power, including the laser source, cooling system, and other components.

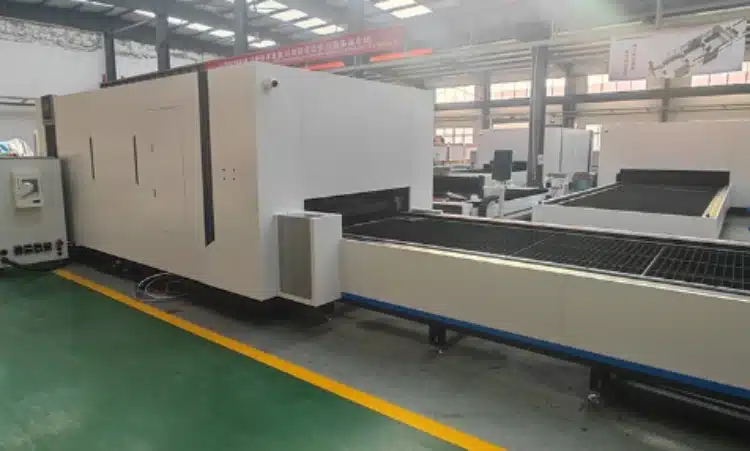

- Fiber Laser Cutting Machines
- Laser Power: Fiber lasers generally range from 1000W to over 20 kW.
- Power Consumption: The fiber laser cutting machine with a power output of 1 kW typically consumes around 7 to 9 kW of electrical power. High-power fiber lasers (e.g., 4 kW to 20 kW) can consume 25 to 90 kW or more, depending on the power level and efficiency.
- Additional Factors Affecting Power Consumption
- Cooling Systems: Laser cutting machines require cooling systems (air-cooled or water-cooled) to maintain optimal operating temperatures. These systems can add significant power consumption, ranging from a few hundred watts to several kilowatts, depending on the cooling method and machine size.
- Auxiliary Equipment: Additional equipment such as exhaust systems, air compressors, and control systems also contribute to the overall power consumption. This auxiliary equipment can add another 1 to 10 kW to the total power usage.
- Operational Settings: The power consumption varies with the operational settings, including cutting speed, material type, and thickness. Higher cutting speeds and thicker materials generally require more power.
The power consumption of laser-cutting machines varies significantly based on the type and power of the laser, cooling systems, auxiliary equipment, and operational settings. Small CO2 laser cutting machines have relatively low power consumption, while high-power fiber laser cutting machines can consume 7 to 90 kW or more. Understanding the specific power requirements of the laser cutting machine you plan to use can help ensure adequate power infrastructure and manage operating costs.
Contact Us
Contact Information Form:
