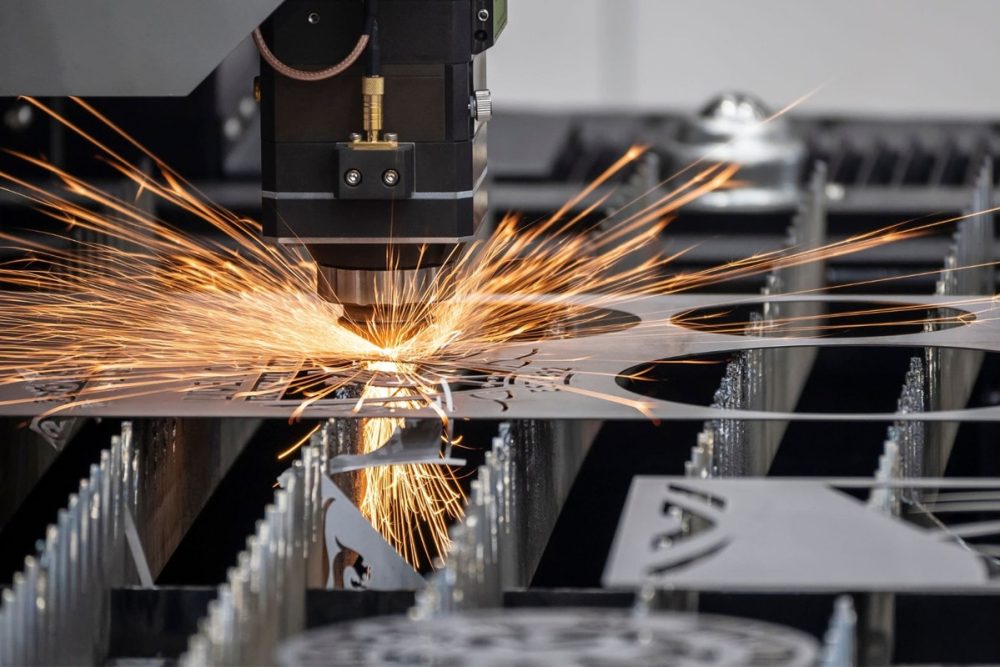

Historical Evolution of Cutting Technologies
The Emergence of Plasma Cutting
The Rise and Refinement of Fiber Laser Cutting
Fundamental Principles of Cutting Operation
How Plasma Cutting Works
How Fiber Laser Cutting Works
Equipment and System Components
Components of a Plasma Cutting Machine
A plasma cutting machine consists of several key components working together to generate and control the plasma arc:
- Power Supply: The power source provides the necessary electrical energy to generate the plasma arc. It ensures consistent current and voltage for stable cutting performance.
- Plasma Torch: The torch is the primary tool where the plasma arc is generated. It houses the nozzle and electrode, which are critical for creating and directing the plasma jet.
- Gas Supply System: Compressed gas (air, oxygen, or nitrogen) is used to ionize and form the plasma arc while also blowing away molten material to create clean cuts.
- CNC Controller: For automated cutting, a computer numerical control (CNC) system is used to guide the plasma torch along predefined paths for precise shapes and patterns.
- Cooling System: To prevent overheating, plasma cutting machines often incorporate a cooling system for the torch and other components.
Components of a Fiber Laser Cutting Machine
Fiber laser cutting machines are built with advanced components designed for high precision and energy efficiency:
- Laser Source: The fiber laser source generates the high-powered laser beam. It uses optical fibers doped with rare-earth elements to amplify light and deliver consistent beam quality.
- Optical System: The beam delivery system focuses the laser into a fine, high-intensity point on the material. It includes lenses, mirrors, and focusing heads to ensure precision.
- Cutting Head: The cutting head houses the laser beam and includes nozzles for the assist gas (oxygen, nitrogen, or compressed air) used to expel molten material.
- Control System: An advanced CNC controller ensures precise motion and cutting accuracy, enabling intricate designs and patterns.
- Cooling System: The laser source and optics are cooled using either water or air cooling systems to maintain consistent performance and prevent overheating.
Material Compatibility
Metals Commonly Processed by Plasma Cutting
Plasma cutting is renowned for its ability to cut through a wide range of conductive metals, particularly those with greater thickness. Common materials processed using plasma cutting include:
- Carbon Steel: Plasma cutting performs exceptionally well on mild steel, offering fast cutting speeds and robust performance for structural applications.
- Stainless Steel: Often used in construction, automotive, and heavy industries, stainless steel can be efficiently cut with plasma, particularly in thicker gauges.
- Aluminum: Plasma cutting is effective for aluminum, commonly used in aerospace and transportation industries, though edge quality may require additional finishing for intricate applications.
- Copper and Brass: These materials, known for their conductivity and reflectivity, are also compatible with plasma cutting, albeit with limitations in precision compared to thinner materials.
Metals Commonly Processed by Fiber Laser Cutting
Fiber laser cutting is ideal for metals requiring high precision, smooth edges, and minimal thermal distortion. Typical materials processed include:
- Stainless Steel: Fiber lasers excel in cutting thin to medium-gauge stainless steel with exceptional accuracy, making it a top choice for decorative and precision applications.
- Carbon Steel: Frequently used in manufacturing and construction, carbon steel can be processed with high efficiency and clean cuts using fiber lasers.
- Aluminum: Fiber laser cutting handles thin aluminum sheets with ease, delivering excellent edge quality for aerospace, electronics, and automotive components.
- Copper and Brass: Unlike older laser technologies, fiber lasers can effectively cut reflective materials like copper and brass, making them suitable for electrical and decorative applications.
- Titanium: Fiber lasers offer precise cutting for titanium, commonly used in aerospace and medical industries.
Cutting Thickness and Capabilities
Thickness Ranges for Plasma Cutting
Plasma cutting is widely recognized for its ability to handle thick materials effectively. Its thickness ranges include:
- Carbon Steel: Typically cuts up to 50 mm (2 inches), with advanced systems capable of cutting beyond this for specialized applications.
- Stainless Steel: Efficient for materials up to 38 mm (1.5 inches), although edge quality may require post-processing.
- Aluminum: Suitable for thicknesses up to 25 mm (1 inch), delivering robust performance for structural applications.
Thickness Ranges for Fiber Laser Cutting
Fiber laser cutting excels in precision and efficiency, particularly for thin to medium-thickness materials. Its effective thickness ranges include:
- Carbon Steel: Typically cuts up to 25 mm (1 inch) with high-power machines, maintaining excellent edge quality.
- Stainless Steel: Handles up to 20 mm (0.8 inches) with precision, ideal for applications requiring smooth finishes.
- Aluminum: Efficient for materials up to 15 mm (0.6 inches), achieving superior accuracy even at the upper range.
Quality Considerations at Various Thicknesses
- Plasma Cutting: Plasma cutting is highly efficient for thick materials but may produce rougher edges and a larger heat-affected zone (HAZ). For thin materials, precision can diminish, often necessitating post-processing to refine edge quality.
- Fiber Laser Cutting: Fiber lasers excel in achieving clean, burr-free cuts with minimal HAZ on thin and medium-thickness materials. As material thickness approaches the upper limits of the laser’s capacity, cutting speed decreases, and edge quality may slightly degrade, but it generally remains superior to plasma cutting.
Cutting Speed and Efficiency
Speed Comparisons under Different Conditions
- Fiber Laser Cutting: Fiber lasers deliver unparalleled speed and precision when processing thin to medium-thickness materials. For metals under 10 mm (0.4 inches), fiber laser cutting can achieve speeds up to three times faster than plasma cutting. Its ability to maintain high-quality cuts at rapid speeds makes it ideal for industries where precision and throughput are crucial.
- Plasma Cutting: Plasma cutting outperforms fiber lasers for thicker materials. On metals above 20 mm (0.8 inches), plasma cutting systems maintain steady cutting speeds and can complete heavy-duty tasks more efficiently than lasers. However, plasma cutting may compromise edge quality and precision at higher speeds.
Production Throughput and Cycle Times
- Fiber Laser Cutting: High-speed operation on thinner materials, combined with minimal need for post-processing, results in shorter cycle times. Automation in material handling and machine efficiency further enhances overall throughput, making fiber lasers a top choice for high-volume production in industries like automotive and electronics.
- Plasma Cutting: While slower on thinner materials, plasma cutting’s ability to quickly cut thick metals contributes to its strength in applications like shipbuilding and construction. However, additional time for edge finishing may increase total cycle times, depending on precision requirements.
Factors Affecting Actual Cutting Speeds
Several variables influence the actual cutting speeds of both technologies:
- Material Type: Metals like stainless steel and aluminum respond differently to laser and plasma cutting systems due to their reflectivity, conductivity, and melting points.
- Material Thickness: Fiber lasers excel at maintaining speed and quality on thin materials, while plasma cutting systems are more effective at higher thickness levels.
- Machine Power: Higher-wattage fiber laser cutting machines and plasma cutting machines can achieve faster cutting speeds but may involve greater energy consumption.
- Assist Gas Selection: For fiber lasers, gases like nitrogen and oxygen affect cutting speed and edge quality, while plasma cutting uses compressed air or other gases to regulate arc performance.
- Operator Settings and Calibration: Proper machine calibration, nozzle condition, and cutting parameters are critical for maximizing speed and maintaining consistent results in both methods.
Cut Quality, Precision, and Edge Characteristics
Kerf Width and Edge Smoothness
- Fiber Laser Cutting: Fiber lasers produce a narrow kerf width, typically ranging from 0.1 mm to 0.3 mm, depending on the material and thickness. This narrow kerf ensures minimal material waste and facilitates intricate designs. The edges are exceptionally smooth, often requiring little to no post-processing for most applications.
- Plasma Cutting: Plasma cutting generates a wider kerf, typically ranging from 1 mm to 3 mm, especially for thicker materials. While it offers adequate smoothness for heavy-duty applications, the edges often exhibit dross or slag that may need grinding or finishing for finer requirements.
Dimensional Accuracy and Repeatability
- Fiber Laser Cutting: Renowned for its precision, it achieves dimensional accuracy within ±0.1 mm and offers excellent repeatability, ensuring consistent quality across multiple runs. This makes it ideal for applications requiring intricate and high-precision cuts, such as in electronics or automotive industries.
- Plasma Cutting: Plasma cutting provides satisfactory dimensional accuracy, typically within ±0.5 mm, but its precision can decrease with thicker materials. Repeatability is reliable for less intricate designs, making plasma cutting suitable for heavy fabrication where tight tolerances are less critical.
Secondary Operations and Finishing Requirements
- Fiber Laser Cutting: Due to the clean edges and minimal heat-affected zones (HAZ), fiber laser cutting usually requires little to no secondary operations. This reduces production time and cost, particularly for applications needing high-quality finishes.
- Plasma Cutting: Plasma cutting often results in rougher edges and a larger HAZ, especially on thicker materials. Post-cutting operations, such as grinding, deburring, or edge smoothing, are frequently necessary to meet precision or aesthetic standards, increasing the time and labor involved in the process.
Operating Costs and Economic Considerations
Initial Capital Investment
- Fiber Laser Cutting: The upfront cost of fiber laser cutting machines is significantly higher than plasma cutting systems. Prices range from tens to hundreds of thousands of dollars, depending on laser power, automation, and additional features. While the initial cost is steep, the precision, speed, and low operational expenses often make fiber lasers a worthwhile investment for industries requiring high accuracy and efficiency.
- Plasma Cutting: Plasma cutting machines are more affordable, with lower initial capital costs. This accessibility makes plasma cutting a practical choice for businesses focused on cutting thick materials where edge precision is less critical. However, the lower upfront cost may be offset by higher operating expenses over time.
Consumables, Maintenance, and Spare Parts
- Fiber Laser Cutting: Fiber lasers are highly efficient, requiring minimal consumables. The primary operational costs involve assisting gases like nitrogen or oxygen, which vary based on material and cutting requirements. Maintenance is infrequent, and fiber laser components such as optical systems and laser sources have long lifespans, reducing the need for spare parts and downtime.
- Plasma Cutting: Plasma cutting systems incur higher consumable costs, including frequent replacement of nozzles, electrodes, and tips due to wear and tear. Gas consumption is also higher, depending on the material and cutting thickness. Additionally, maintenance intervals are shorter, resulting in greater downtime and higher expenses for spare parts and services.
Energy Consumption and Environmental Impact
- Fiber Laser Cutting: Fiber laser cutting machines are highly energy-efficient, and consume less power compared to plasma cutting systems, especially when cutting thinner materials. Their lower energy requirements reduce operating costs and contribute to a smaller carbon footprint. Fiber lasers also produce less noise and fewer fumes, making them an environmentally friendly option.
- Plasma Cutting: Plasma cutting consumes more energy, particularly when processing thicker materials. The process generates substantial heat, noise, and fumes, necessitating robust ventilation or filtration systems to meet environmental and workplace safety standards. This can increase operational complexity and costs.
Calculating Return on Investment (ROI)
Calculating ROI involves balancing upfront investment, operational efficiency, and market needs:
- Upfront Cost vs. Operational Savings: While plasma cutting machines have lower initial costs, fiber laser machines offer reduced long-term costs due to minimal consumables, lower energy consumption, and less frequent maintenance.
- Production Throughput: For high-volume operations requiring precision and speed, fiber lasers provide a faster ROI due to their ability to handle intricate designs with minimal finishing. Plasma cutting offers strong ROI for heavy-duty applications where precision is secondary.
- Lifecycle Value: Fiber lasers tend to have a longer operational lifespan and higher resale value compared to plasma cutting systems, further contributing to their ROI.
- Market Demands: Businesses targeting industries with high precision requirements, such as aerospace or electronics, may realize faster ROI with fiber lasers, while plasma cutting is ideal for construction or heavy equipment manufacturing.
Maintenance, Downtime, and Operational Complexity
Maintenance Routines for Plasma Cutting Systems
Plasma-cutting systems require regular maintenance due to their reliance on consumable components and high wear rates. Key maintenance tasks include:
- Consumable Replacement: Frequent replacement of nozzles, electrodes, and tips is necessary due to wear during operation. Monitoring these components is critical to maintaining cut quality and preventing torch damage.
- Gas Supply System Checks: Compressed air or gas systems must be inspected for leaks and pressure consistency to ensure optimal performance.
- Torch and Cable Maintenance: Cleaning the plasma torch and inspecting cables for wear and damage helps avoid disruptions and prolongs component lifespan.
- Cooling System Servicing: Cooling systems need regular inspection to prevent overheating and maintain stable cutting performance.
- Routine Calibration: Ensuring the CNC system and cutting parameters are correctly set minimizes cutting inaccuracies and material waste.
Maintenance Routines for Fiber Laser Cutting Systems
Fiber laser cutting systems are known for their durability and lower maintenance demands, thanks to their solid-state design and fewer moving parts. Maintenance typically involves:
- Lens and Optics Cleaning: Periodic cleaning of lenses and protective covers is essential to maintain beam quality and cutting precision.
- Assist Gas System Checks: Verifying the purity and pressure of assist gases ensures consistent cutting performance.
- Cooling System Maintenance: Regularly inspecting and maintaining the water or air cooling system prevents overheating and extends the lifespan of the laser source.
- Software Updates: Ensuring the control system is up-to-date helps maintain cutting efficiency and supports advanced features.
- Preventive Diagnostics: Periodic system checks and diagnostics can identify potential issues early, reducing the likelihood of unplanned downtime.
Training and Skill Requirements
- Plasma Cutting: Plasma cutting systems are relatively straightforward to operate, making them suitable for operators with basic training. However, understanding consumable wear, gas pressure settings, and torch maintenance requires hands-on experience. For advanced CNC-controlled plasma cutting systems, additional training may be needed to optimize performance.
- Fiber Laser Cutting: Fiber laser cutting systems demand higher operator expertise, particularly for managing CNC programming, cutting parameters, and assisting gas settings. Operators must also be trained in optics handling and maintenance routines to maximize system performance. Advanced systems with automation features may require specialized technical knowledge, but this is often offset by easier day-to-day operation and reduced maintenance complexity.
Safety, Workplace Environment, and Compliance
Safety Measures for Plasma Cutting
Plasma cutting systems involve high temperatures, electrical arcs, and gases, necessitating robust safety protocols:
- Protective Gear: Operators must wear flame-resistant clothing, gloves, and safety goggles to shield against sparks, molten metal, and ultraviolet (UV) radiation generated during cutting.
- Ventilation: Plasma cutting produces fumes, particulate matter, and gases, especially when cutting coated or painted metals. Adequate ventilation or localized exhaust systems are essential to maintain air quality.
- Electrical Safety: Proper grounding and insulation of the power supply are critical to minimize the risk of electrical shocks. Regular inspection of cables and connections is also necessary.
- Fire Safety: The high-temperature plasma arc and flying sparks can pose fire hazards. Operators should maintain a clear workspace and have fire extinguishers readily available.
- Work Area Shielding: Shielding the cutting area protects other workers from exposure to UV radiation and stray sparks.
Safety Measures for Fiber Laser Cutting
Fiber laser cutting systems involve high-energy beams and precision machinery, requiring specific safety measures:
- Laser Safety Equipment: Operators must wear laser safety glasses rated for the wavelength of the laser beam to prevent eye injuries. Proper training is essential to understand laser hazard classifications and safe handling.
- Enclosed Cutting Area: Most fiber laser machines feature enclosed designs to prevent accidental exposure to the laser beam, reducing risks to operators and nearby personnel.
- Fume Extraction Systems: Cutting with fiber lasers, particularly on certain metals, can release fumes and fine particulate matter. Effective fume extraction or filtration systems are required to ensure air quality.
- Preventive Maintenance: Proper maintenance of laser optics, cooling systems, and safety interlocks ensures safe operation and prevents malfunctions that could pose hazards.
- Electrical and Mechanical Safety: As with plasma cutting, ensuring proper grounding, insulation, and regular equipment checks minimizes electrical and mechanical risks.
Environmental and Occupational Health Regulations
Both plasma and fiber laser cutting systems must comply with environmental and workplace safety regulations to protect employees and the environment:
- Fume and Emission Control: Both technologies generate fumes, with plasma cutting often producing higher levels. Employers must implement exhaust ventilation systems or air filtration units to meet air quality standards, such as those set by OSHA or local regulations.
- Noise Levels: Plasma cutting can produce significant noise, necessitating the use of hearing protection and compliance with workplace noise exposure limits. Fiber lasers typically operate more quietly, reducing the need for extensive noise control measures.
- Material-Specific Hazards: Cutting certain materials, such as galvanized steel or coated metals, can release hazardous chemicals. Proper handling, ventilation, and protective equipment are required to minimize risks.
- Energy Efficiency and Sustainability: Fiber lasers are more energy-efficient than plasma cutting systems, aligning with environmental sustainability goals and reducing overall energy consumption.
Applications and Industry Sectors
Typical Plasma Cutting Applications
Plasma cutting is widely used in industries that require rapid processing of thick and conductive materials. Common applications include:
- Construction and Infrastructure: Plasma cutting is ideal for heavy steel beams, girders, and thick plates used in bridges, buildings, and structural frameworks.
- Shipbuilding: This method excels in cutting thick steel and aluminum plates for hulls, bulkheads, and other marine components.
- Automotive and Heavy Machinery: Plasma cutting systems are used to cut thick metal parts for vehicle chassis, machinery components, and industrial equipment.
- Repair and Maintenance: Plasma cutting is effective for on-site repairs, especially in industries like agriculture, mining, and manufacturing, where fast and robust cutting is required.
- Metal Fabrication: General-purpose cutting in workshops for projects requiring speed over precision, such as industrial ducts and equipment parts.
Typical Fiber Laser Cutting Applications
Fiber laser cutting is preferred in industries that demand precision, clean edges, and efficiency. Key applications include:
- Aerospace and Aviation: Used for cutting lightweight metals like titanium and aluminum with high accuracy, fiber lasers are essential for producing components with strict tolerances.
- Electronics and Technology: Fiber lasers cut intricate designs for circuit boards, enclosures, and heat sinks, often with minimal thermal distortion.
- Automotive: Thin sheet metal parts, like body panels, and decorative components are processed with smooth edges using fiber lasers.
- Medical Equipment: Precision cutting of stainless steel and titanium for surgical instruments and medical devices.
- Signage and Decorative Work: Producing detailed engravings, logos, and ornamental metalwork for branding and artistic projects.
Overlapping and Niche Markets
While plasma and fiber laser cutting serve distinct roles, there is some overlap in applications, alongside niche markets unique to each:
- Overlapping Markets: Both technologies are employed in metal fabrication and automotive industries. Plasma is used for heavier components, while fiber lasers are preferred for thinner materials and detailed designs.
- Plasma Cutting Niche: Ideal for thick-material processing in shipbuilding, heavy machinery, and construction where speed and rugged output are priorities.
- Fiber Laser Cutting Niche: Dominates in sectors like aerospace, electronics, and medical equipment due to its ability to achieve high precision and minimal finishing requirements.
Considerations for Choosing Between Fiber Laser and Plasma
Material Requirements and Quality Goals
The type of material and the desired quality of the cut are crucial in determining the right technology:
- Fiber Laser Cutting: Ideal for thin to medium-thickness metals such as stainless steel, aluminum, and reflective materials like brass and copper. It delivers precise cuts with smooth edges, minimal heat-affected zones (HAZ), and no need for secondary finishing, making it suitable for high-quality applications.
- Plasma Cutting: Excels in cutting thicker metals, including mild steel, stainless steel, and aluminum, often up to 50 mm or more. While it offers robust performance, edge quality may require post-processing, especially for applications with strict aesthetic or precision demands.
Production Volume and Throughput Needs
The choice between fiber laser and plasma cutting also depends on production requirements:
- Fiber Laser Cutting: Its high-speed operation, precision, and automation capabilities make it ideal for industries requiring high-volume production with tight tolerances and fast turnaround times.
- Plasma Cutting: Offers fast cutting speeds on thick materials, making it a practical choice for industries like construction, shipbuilding, and heavy equipment manufacturing where speed and volume are prioritized over fine detail.
Budget Constraints and Financial Planning
Budget considerations often play a significant role in selecting cutting equipment:
- Fiber Laser Cutting: Requires a higher initial investment due to advanced technology and automation features. However, its lower operating costs (minimal consumables, less maintenance, and energy efficiency) can offset the upfront expense over time. It’s a better long-term investment for industries prioritizing quality and efficiency.
- Plasma Cutting: More affordable in terms of initial cost, plasma cutting systems are a budget-friendly choice for businesses focused on cutting thick materials with moderate precision requirements. However, higher consumable and maintenance costs may reduce cost-effectiveness in the long run.
Future-Proofing and Technology Upgrades
Investing in a cutting system that can adapt to future needs ensures long-term value:
- Fiber Laser Cutting: Fiber lasers are highly scalable, with options to upgrade power output, automation, and software features. Their versatility in handling different materials and intricate designs positions them as a future-proof solution for evolving industry demands.
- Plasma Cutting: While robust, plasma cutting systems are more limited in their ability to accommodate advancements in precision and automation. They remain a strong choice for industries with stable, heavy-duty cutting requirements but may lack flexibility for future precision-driven applications.
