VIM-FS Laser Marking Machine

The VIM-FS laser marking machine features a split design, a high-precision fiber laser generator, and an advanced control system for fast, accurate markings on a variety of materials. Ideal for industrial use.
VIM-FS Laser Marking Machine

$2,300.00$20,300.00

Table of Contents

Product Description

The VIM-FS laser marking machine is a cutting-edge solution designed for high-performance marking tasks. Featuring a split design, this machine offers flexibility and ease of use, making it an ideal choice for a wide range of applications. It is equipped with a powerful fiber laser generator that ensures high precision and durability, enabling intricate and accurate markings on various surfaces. The advanced control system and high-speed galvo scanner work in synergy to deliver quick and consistent results, significantly improving productivity.
The machine’s high-precision field lens provides enhanced focal depth and clarity, ensuring superior marking quality. Additionally, the air cooling device efficiently maintains optimal operating temperatures, enhancing the machine’s longevity and reliability. The red dot pointer offers precise alignment, while the safety interlock system ensures secure and safe operation, even in high-demand environments. Whether for industrial, commercial, or specialized applications, the VIM-FS laser marking machine delivers exceptional performance, precision, and versatility, making it an invaluable tool for modern marking needs.

Product Configuration

Split Design

Split Design

The split design of the laser marking machine provides exceptional flexibility, with the laser source and control unit separated for easier installation and space optimization. This design enhances mobility, simplifies maintenance, and improves heat dissipation, ensuring reliable performance and extended machine lifespan while delivering precise, high-quality marking results.

Fiber Laser Generator

Fiber Laser Generator

The fiber laser generator delivers high-quality, consistent marking with exceptional precision. Known for its long lifespan and energy efficiency, it provides powerful and stable performance across various materials. Ideal for high-speed, high-precision applications, this advanced generator ensures minimal maintenance and maximum productivity, making it perfect for industrial use.

Air Cooling Device

Air Cooling Device

The air cooling device is designed to efficiently regulate the temperature of the laser marking machine, preventing overheating during prolonged operations. By providing continuous airflow, it ensures stable performance and extends the lifespan of the system. This compact, reliable feature is essential for maintaining high-quality marking results with minimal downtime.

Advanced Control System

Advanced Control System

The advanced control system offers intuitive, precise management of the laser marking machine. Featuring user-friendly software, it allows for easy operation, custom configurations, and quick adjustments. With real-time monitoring and enhanced functionality, this system ensures consistent performance, high accuracy, and seamless integration into automated production environments.

High-Speed Galvo Scanner

High-Speed Galvo Scanner

The high-speed galvo scanner enables rapid, precise laser marking by using advanced galvanometer technology. It ensures quick, accurate beam positioning for detailed, high-quality marks on a variety of materials. This system optimizes production efficiency, offering enhanced speed without compromising on precision or consistency, ideal for high-volume applications.

High-Precision Field Lens

High-Precision Field Lens

The high-precision field lens ensures exceptional focus and clarity during laser marking operations. Designed to minimize distortion, it delivers precise, uniform laser beams across a wide range of materials. This advanced lens enhances marking quality, enabling fine detail and superior accuracy for intricate designs and high-resolution applications.

Red Dot Pointer

Red Dot Pointer

The red dot pointer simplifies material positioning by visibly indicating the laser's focal point. This easy-to-use feature improves alignment accuracy, reducing setup time and enhancing workflow efficiency. It ensures precise marking results, helping operators quickly adjust and align materials for consistent, high-quality output in various applications.

Safety Interlock System

Safety Interlock System

The safety interlock system ensures secure operation by automatically shutting down the machine if safety doors or panels are opened during operation. This feature protects users from potential laser exposure and accidents, enhancing workplace safety. It's a crucial component for meeting industry safety standards and providing a secure working environment.

Product Features

  • Split Design: The machine features a versatile split design that optimizes space usage and enhances accessibility. It allows for easy integration into various working environments and offers improved portability.
  • Fiber Laser Generator: Equipped with a high-performance fiber laser generator, the machine delivers high-quality, precise marking on a variety of materials. This technology ensures long-lasting performance with minimal maintenance.
  • Air Cooling Device: The built-in air cooling system effectively maintains an optimal working temperature, preventing overheating and extending the life of the machine for consistent, reliable operation.
  • Advanced Control System: The machine features an advanced control system, providing intuitive operation with real-time feedback, allowing users to make adjustments on the fly for enhanced productivity and quality.
  • High-Speed Galvo Scanner: The high-speed galvo scanner enables fast and precise marking, minimizing processing time without sacrificing accuracy. It allows for smooth marking of complex designs with minimal distortion.
  • High-Precision Field Lens: The machine is equipped with a high-precision field lens that ensures sharp, high-resolution markings, offering excellent detail and consistency across various materials.
  • Red Dot Pointer: A red dot pointer ensures easy and accurate positioning, improving workflow efficiency and reducing setup time by providing a clear visual alignment for precise marking.
  • Safety Interlock System: The safety interlock system ensures safe machine operation by preventing the machine from being activated if safety protocols are not followed. This feature guarantees protection for both operators and the equipment.

Technical Parameters

Model VIM20FS VIM30FS VIM50FS VIM60FS VIM70FS VIM100FS
Laser Power 20W 30W 50W 60W 70W 100W
Laser Wavelength 1080nm
Making Range 110*110mm, 200*200mm
Laser Generator Raycus, IPG
Minimum Line Width 10 Microns
Minimum Characters 0.15mm
Usage Environment Clean and Dust-Free or Dust-Less
Graphic Format Supported bmp, jpg, gif, png, tif, ai, dxf, dst, plt, etc
Laser Module Life >100000 Hours

Optional Configuration

Smoke Exhaust System

Smoke Exhaust System

The smoke exhaust system is an essential upgrade for maintaining a clean and safe working environment. It efficiently captures and filters smoke, fumes, and dust generated during the laser marking process. This system helps to improve air quality, ensuring compliance with safety standards and providing a healthier workspace for operators.

Laser Marking Rotary Attachment

Rotary Attachment

The rotary attachment enhances the versatility of the laser marking machine, allowing for the marking of cylindrical or irregularly shaped objects. It rotates items smoothly during the marking process, ensuring precise, consistent results. Ideal for personalized gifts, metal pipes, and more, this attachment expands the machine's capabilities for complex marking tasks.

2-Axis Mobile Worktable

2-Axis Mobile Worktable

The 2-axis mobile worktable provides enhanced mobility and precision for laser marking tasks. With adjustable X and Y axes, it allows easy positioning and alignment of materials, ensuring accurate and efficient marking. Perfect for handling larger or complex items, this worktable boosts productivity and versatility in various applications.

Autofocus System

Autofocus System

The autofocus system automatically adjusts the laser’s focal length to achieve optimal precision, ensuring clear, sharp markings across different material thicknesses. This feature eliminates the need for manual focus adjustments, enhancing productivity and accuracy. Perfect for applications requiring consistent quality and high-efficiency processing.

Product Applications

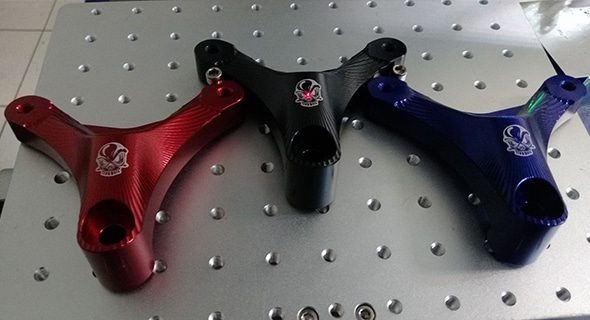

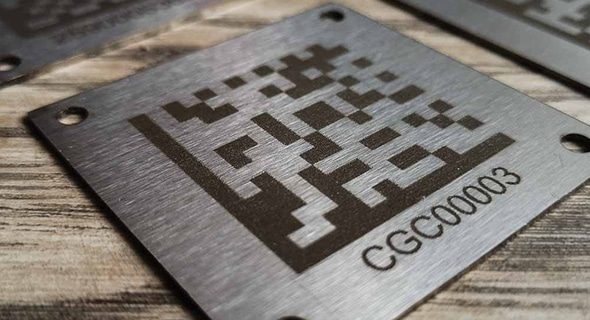

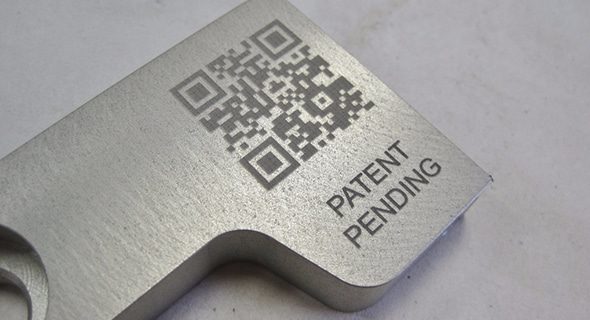

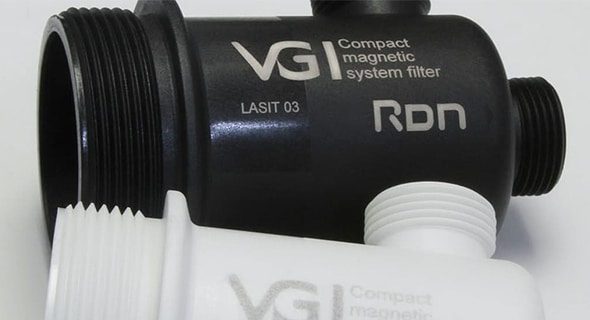

The VIM-FS laser marking machine is designed for a wide range of industrial applications where precision and efficiency are critical. Its split design and advanced technology make it ideal for use in sectors such as electronics, automotive, medical devices, aerospace, and manufacturing. The machine excels in tasks that require high-speed, high-resolution markings, such as serial numbers, barcodes, logos, and intricate designs. Whether integrated into production lines or used for standalone marking tasks, the VIM-FS laser marking machine ensures accurate, durable markings on various components. The flexibility of its features allows it to adapt to both large-scale operations and small, detailed marking jobs, improving productivity and reducing operational downtime. With its robust safety and precision capabilities, the VIM-FS laser marking machine is the ideal solution for businesses looking to enhance their manufacturing processes with cutting-edge laser technology.
Plasma Cutting VS Laser Cutting
Plasma Cutting VS Laser Cutting
Plasma Cutting VS Laser Cutting
Plasma Cutting VS Laser Cutting

Why Choose Us

High Precision

Our laser marking machines offer incredible accuracy, ensuring clean, sharp, and clear markings every time. Whether it’s a logo, barcode, or serial number, you can count on perfect results.

Versatile Applications

These machines can mark a wide range of materials, from metals and plastics to ceramics and glass. No matter the material, our machines deliver precise results.

Permanent Marks

Laser markings are permanent, meaning they won’t fade, peel, or wear off. This makes them ideal for applications that require long-lasting identification, traceability, and branding.

Eco-Friendly

Laser marking uses no chemicals, inks, or solvents, making it an environmentally friendly choice. It produces minimal waste, reduces pollution, and has a low environmental impact.

Easy to Use

Our laser marking machines are designed with user-friendliness in mind. With simple controls and intuitive software, you’ll be able to start marking your products right away.

Cost-Effective

By reducing the need for consumables like ink or labels, and speeding up the marking process, our laser marking machines help you save money over time.
