VIM-FD Laser Marking Machine

The VIM-FD laser marking machine offers precision, speed, and versatility with its desktop design, advanced control system, and high-speed galvo scanner. Ideal for detailed and durable markings across industries.
VIM-FD Laser Marking Machine

$2,000.00$20,000.00

Table of Contents

Product Description

The VIM-FD laser marking machine combines cutting-edge technology with a user-friendly desktop design, offering precision, speed, and versatility for a wide range of marking applications. Featuring a high-quality fiber laser generator, this machine delivers exceptional marking performance on various materials, including metals, plastics, and ceramics, with fine detail and permanent results. The integrated high-speed galvo scanner ensures rapid marking speeds, while the high-precision field lens guarantees accurate, sharp markings, even on complex shapes.
The red dot pointer provides easy alignment and ensures accurate positioning of the mark, enhancing user convenience. To keep the machine operating at optimal efficiency, the air cooling device maintains temperature stability, ensuring consistent performance and longevity of the components. The advanced control system offers intuitive operation, making it easy to set parameters and manage jobs.
Designed with safety in mind, the safety interlock system protects users by automatically halting operations when the protective cover is opened. The compact and efficient desktop design makes the VIM-FD laser marking machine an ideal solution for businesses looking for high-quality laser marking with a small footprint.

Product Configuration

Desktop Design

Desktop Design

The desktop design of this laser marking machine offers a compact and space-saving solution, ideal for small workshops or offices. Its ergonomic design ensures easy access to the work area, providing convenience for operators. Perfect for businesses with limited space, it combines functionality and efficiency in a sleek, user-friendly package.

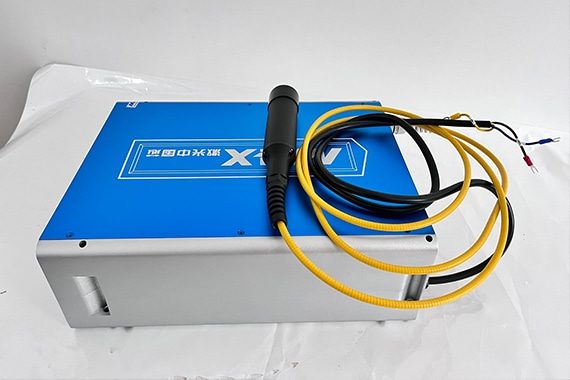

Fiber Laser Generator

Fiber Laser Generator

The fiber laser generator delivers high-quality, consistent marking with exceptional precision. Known for its long lifespan and energy efficiency, it provides powerful and stable performance across various materials. Ideal for high-speed, high-precision applications, this advanced generator ensures minimal maintenance and maximum productivity, making it perfect for industrial use.

Air Cooling Device

Air Cooling Device

The air cooling device is designed to efficiently regulate the temperature of the laser marking machine, preventing overheating during prolonged operations. By providing continuous airflow, it ensures stable performance and extends the lifespan of the system. This compact, reliable feature is essential for maintaining high-quality marking results with minimal downtime.

Advanced Control System

Advanced Control System

The advanced control system offers intuitive, precise management of the laser marking machine. Featuring user-friendly software, it allows for easy operation, custom configurations, and quick adjustments. With real-time monitoring and enhanced functionality, this system ensures consistent performance, high accuracy, and seamless integration into automated production environments.

High-Speed Galvo Scanner

High-Speed Galvo Scanner

The high-speed galvo scanner enables rapid, precise laser marking by using advanced galvanometer technology. It ensures quick, accurate beam positioning for detailed, high-quality marks on a variety of materials. This system optimizes production efficiency, offering enhanced speed without compromising on precision or consistency, ideal for high-volume applications.

High-Precision Field Lens

High-Precision Field Lens

The high-precision field lens ensures exceptional focus and clarity during laser marking operations. Designed to minimize distortion, it delivers precise, uniform laser beams across a wide range of materials. This advanced lens enhances marking quality, enabling fine detail and superior accuracy for intricate designs and high-resolution applications.

Red Dot Pointer

Red Dot Pointer

The red dot pointer simplifies material positioning by visibly indicating the laser's focal point. This easy-to-use feature improves alignment accuracy, reducing setup time and enhancing workflow efficiency. It ensures precise marking results, helping operators quickly adjust and align materials for consistent, high-quality output in various applications.

Safety Interlock System

Safety Interlock System

The safety interlock system ensures secure operation by automatically shutting down the machine if safety doors or panels are opened during operation. This feature protects users from potential laser exposure and accidents, enhancing workplace safety. It's a crucial component for meeting industry safety standards and providing a secure working environment.

Product Features

  • Desktop Design: The compact desktop configuration allows the machine to fit easily into any workspace, making it ideal for small to medium-sized operations without compromising on performance.
  • Fiber Laser Generator: Equipped with a high-powered fiber laser generator, the machine delivers consistent and durable marks on a variety of materials, including metals, plastics, and ceramics. It offers excellent beam quality and high efficiency for precise and reliable marking.
  • High-Speed Galvo Scanner: The advanced high-speed galvo scanning system enhances the marking speed and accuracy, ensuring fast, sharp, and clear markings on both simple and intricate designs.
  • High-Precision Field Lens: The machine’s precision lens guarantees fine and detailed marks, providing high-quality results even on small fonts, logos, or complex patterns with clear legibility.
  • Red Dot Pointer: The integrated red dot pointer provides a visual reference for accurate alignment and positioning of the marking area, reducing setup time and errors during operation.
  • Advanced Control System: The intuitive and user-friendly control system allows for easy customization of marking parameters, including speed, power, and frequency. This makes it adaptable to different marking materials and application requirements.
  • Air Cooling Device: The built-in air cooling system ensures stable operation, preventing overheating and ensuring that the machine operates efficiently over long periods.
  • Safety Interlock System: The safety interlock system ensures the protection of operators by automatically shutting off the machine when the cover is open, minimizing exposure to the laser beam and preventing accidents.

Technical Parameters

Model VIM20FD VIM30FD VIM50FD VIM60FD VIM70FD VIM100FD
Laser Power 20W 30W 50W 60W 70W 100W
Laser Wavelength 1080nm
Making Range 110*110mm, 200*200mm
Laser Generator Raycus, IPG
Minimum Line Width 10 Microns
Minimum Characters 0.15mm
Usage Environment Clean and Dust-Free or Dust-Less
Graphic Format Supported bmp, jpg, gif, png, tif, ai, dxf, dst, plt, etc
Laser Module Life >100000 Hours

Optional Configuration

Smoke Exhaust System

Smoke Exhaust System

The smoke exhaust system is an essential upgrade for maintaining a clean and safe working environment. It efficiently captures and filters smoke, fumes, and dust generated during the laser marking process. This system helps to improve air quality, ensuring compliance with safety standards and providing a healthier workspace for operators.

Laser Marking Rotary Attachment

Rotary Attachment

The rotary attachment enhances the versatility of the laser marking machine, allowing for the marking of cylindrical or irregularly shaped objects. It rotates items smoothly during the marking process, ensuring precise, consistent results. Ideal for personalized gifts, metal pipes, and more, this attachment expands the machine's capabilities for complex marking tasks.

2-Axis Mobile Worktable

2-Axis Mobile Worktable

The 2-axis mobile worktable provides enhanced mobility and precision for laser marking tasks. With adjustable X and Y axes, it allows easy positioning and alignment of materials, ensuring accurate and efficient marking. Perfect for handling larger or complex items, this worktable boosts productivity and versatility in various applications.

Autofocus System

Autofocus System

The autofocus system automatically adjusts the laser’s focal length to achieve optimal precision, ensuring clear, sharp markings across different material thicknesses. This feature eliminates the need for manual focus adjustments, enhancing productivity and accuracy. Perfect for applications requiring consistent quality and high-efficiency processing.

Product Applications

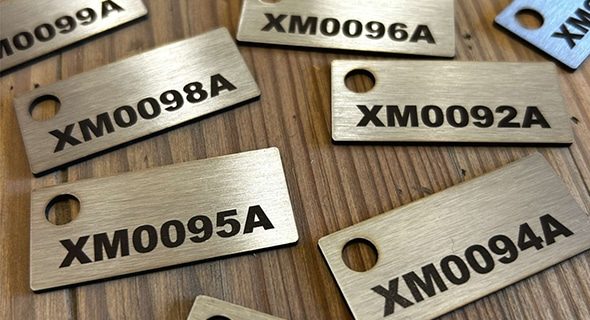

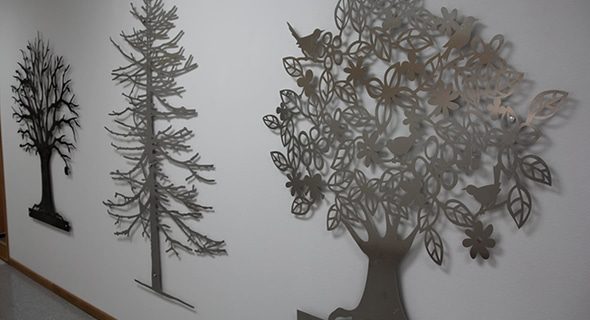

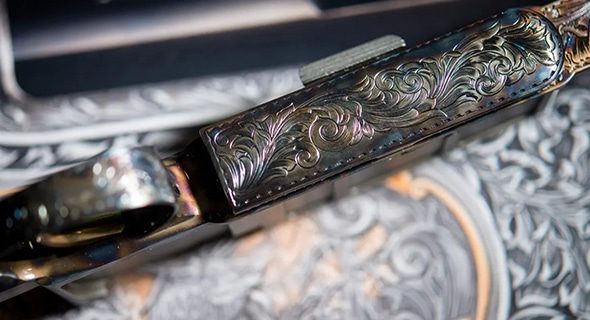

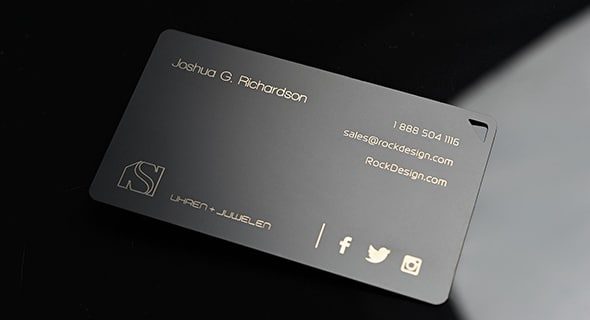

The VIM-FD laser marking machine is designed for a wide array of industrial applications, delivering high-precision and durable markings for diverse marking tasks. It is ideal for use in manufacturing, electronics, automotive, medical devices, and aerospace industries where detailed and permanent marking is required. The system can mark logos, serial numbers, barcodes, QR codes, and intricate designs on products, ensuring traceability and brand identity. Additionally, it is commonly used for component identification, part numbering, and product customization, offering high-speed and high-quality results even on complex or small-scale marks. The VIM-FD laser marking machine ensures consistent performance, accuracy, and reliability, making it a perfect choice for both small-scale businesses and large-scale industrial operations seeking high efficiency and minimal downtime in their marking processes.
