VIE-T Laser Cutting Machine

The VIE-T laser cutting machine is a versatile cutting solution for both metal sheets and tubes. Equipped with a high-power laser generator, advanced cutting head, and flexible exchange worktable for enhanced efficiency and precision.
VIE-T Laser Cutting Machine

$43,300.00$188,000.00

Table of Contents

Product Description

The VIE-T laser cutting machine is a high-performance solution designed for cutting both metal sheets and tubes with exceptional precision and speed. Featuring an advanced laser cutting head and high-power laser generator, the VIE-T laser cutting machine ensures clean, accurate cuts across a wide range of materials, including stainless steel, carbon steel, aluminum, and more. This versatile machine is equipped with a flexible exchange worktable, allowing for efficient material handling and minimal downtime during cutting operations. The heavy-duty tube welding bed provides superior stability, ensuring high-quality results even when cutting metal tubes of various shapes and sizes.
The aviation aluminum beam enhances the machine’s structural integrity while reducing weight, and improving cutting speed and precision. Coupled with high-performance servo motors and high-precision linear guides, the VIE-T laser cutting machine guarantees smooth, accurate movements for both sheet and tube-cutting tasks. The efficient rotary chuck supports smooth rotation for tube cutting, while the advanced control system ensures intuitive operation and optimized performance. With its powerful combination of features, the VIE-T laser cutting machine is perfect for industries such as metal fabrication, automotive, aerospace, and structural steel processing, offering versatility, efficiency, and high-quality cutting.

Product Configuration

Advanced Laser Cutting Head

Advanced Laser Cutting Head

The advanced laser cutting head is designed for precision and efficiency, ensuring high-quality cuts with minimal distortion. It delivers exceptional performance across various materials and features automated focus adjustment, advanced cooling technology, and superior stability. Ideal for demanding industrial applications, it enhances cutting speed and accuracy.

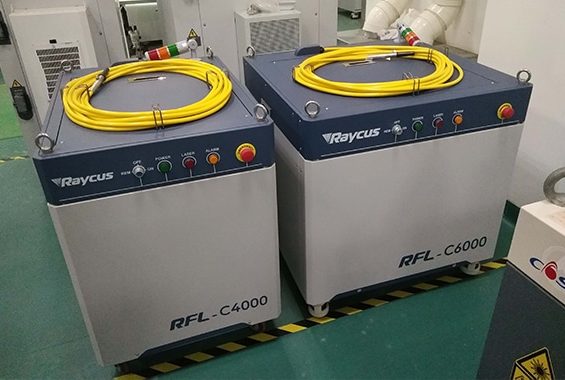

High-Power Laser Generator

High-Power Laser Generator

The high-power laser generator (1-12kW) delivers exceptional cutting power, enabling fast and efficient processing of thick materials. With its superior beam quality and consistent output, it ensures precise, high-speed cuts across a wide range of metals. This powerful generator is perfect for demanding industrial applications requiring maximum performance and reliability.

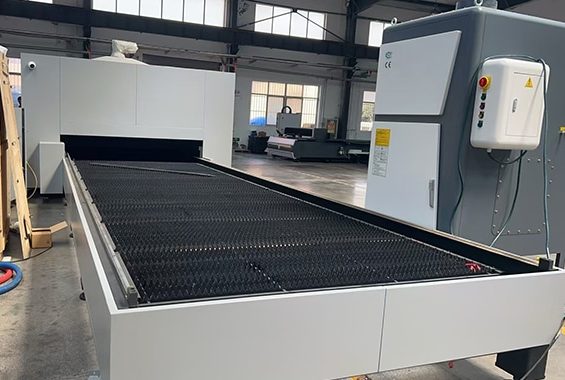

Flexible Exchange Worktable

Flexible Exchange Worktable

The flexible exchange worktable enhances workflow efficiency with its quick and easy swap system, minimizing downtime between cutting jobs. Designed for seamless integration, it accommodates different material sizes and shapes, providing versatility and convenience. This feature allows for continuous operation, boosting productivity while maintaining high precision and cutting quality.

Aviation Aluminum Beam

Aviation Aluminum Beam

The aviation aluminum beam is lightweight yet incredibly strong, offering superior rigidity and durability. Engineered from high-grade aviation aluminum, it minimizes vibrations and ensures smooth, precise movement during cutting operations. This advanced material enhances overall machine performance, improving cutting speed and accuracy while maintaining long-term reliability in demanding industrial environments.

High-Performance Servo Motor

High-Performance Servo Motor

The high-performance servo motor delivers exceptional speed, precision, and reliability. Designed for seamless motion control, it ensures smooth and accurate cutting with minimal energy consumption. Its advanced technology allows for quick response times and superior positioning accuracy, making it an ideal choice for high-speed, high-precision fiber laser cutting applications.

High-Precision Linear Guides

High-Precision Linear Guides

The high-precision linear guides ensure smooth, accurate movement along the cutting axis, minimizing friction and wear. Engineered for exceptional stability and reliability, they provide consistent performance in high-speed operations. With superior alignment and minimal maintenance, these guides enhance cutting precision and contribute to the machine's overall longevity and efficiency.

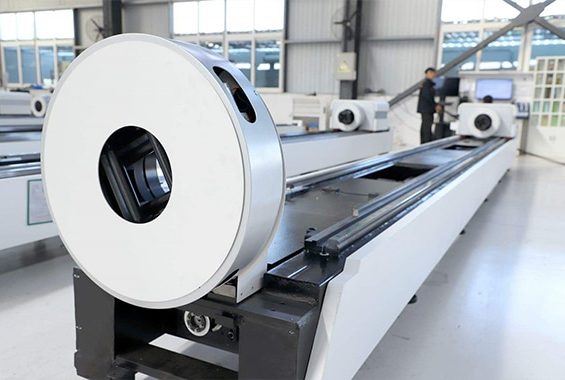

Efficient Rotary Chuck

Efficient Rotary Chuck

The efficient rotary chuck is designed for precise rotation and stable clamping, ensuring smooth, accurate cutting of cylindrical materials. Its advanced mechanism allows for quick adjustments and secure holding, improving processing efficiency. With high durability and minimal maintenance, this feature enhances productivity while maintaining consistent cutting quality for diverse applications.

Advanced Control System

Advanced Control System

The advanced control system integrates cutting-edge software with intuitive interfaces to deliver precise, real-time control over the laser cutting process. Featuring advanced algorithms and user-friendly operation, it ensures optimized cutting paths, enhanced efficiency, and consistent quality. This system boosts productivity while reducing errors, making it ideal for complex, high-speed applications.

Product Features

  • Dual Cutting Capability: The machine is designed to cut both metal sheets and tubes, offering versatile applications for a wide range of industries.
  • Advanced Laser Cutting Head: Equipped with a high-performance cutting head for precise and high-quality cuts, ensuring superior accuracy on both sheet and tube materials.
  • High-Power Laser Generator: Delivers powerful and consistent laser output for cutting through thick materials, ensuring fast and efficient processing with exceptional cut quality.
  • Flexible Exchange Worktable: The innovative exchange worktable design reduces downtime between jobs, improving productivity and streamlining workflow during metal sheet and tube changes.
  • Heavy-Duty Tube Welding Bed: Provides exceptional stability and support, ensuring accuracy and minimal distortion during tube cutting operations.
  • Aviation Aluminum Beam: Lightweight and rigid, the aluminum beam enhances the machine’s cutting speed, precision, and overall performance, reducing machine wear over time.
  • High-Performance Servo Motor: The servo motor ensures smooth, high-speed movements, reducing cycle times while maintaining precision during both sheet and tube-cutting operations.
  • High-Precision Linear Guides: Guarantees precise, smooth motion along all axes, ensuring long-term accuracy and high-quality results in both cutting metal sheets and tubes.
  • Efficient Rotary Chuck: Optimized for tube cutting, the rotary chuck offers smooth rotation, reducing vibration and providing accurate cuts for various tube shapes and sizes.
  • Advanced Control System: The user-friendly control system optimizes machine operations, with intuitive software that ensures precise and efficient cutting on complex designs.

Smart Function

Technical Parameters

Model VIE3015T VIE4015T VIE4020T VIE6015T VIE6025T
Cutting Area 3000*1500mm 4000*1500mm 4000*2000mm 6000*1500mm 6000*2500mm
Laser Head Raytools, WSX, BOCI, Osprey
Laser Power 1500-20000W
Laser Generator Raycus, MAX, IPG
Control System CypCut, Weihong
Servo Motor And Driver Fuji, Delta, Yaskawa
Guide Rails Taiwan Linear Rails
Reducer Japan Shinbo, France Mortori
Max. Acceleration 1.4G 1.3G
Z Axis Travel 300mm
Positioning Accuracy 0.05mm
Repositioning Accuracy 0.03mm

Optional Configuration

Smoke Purifier System

Smoke Purifier System

The smoke purifier system is an optional configuration designed to capture and filter harmful fumes and particles generated during the laser-cutting process. By maintaining a cleaner and safer working environment, it reduces health risks and complies with environmental regulations. This system ensures optimal air quality and enhances overall machine performance.

High-Pressure Reducing Valve

High-Pressure Reducing Valve

The high-pressure reducing valve is an optional configuration that ensures precise control of gas pressure during the laser-cutting process. By regulating high-pressure gases to optimal levels, it improves cutting quality, reduces gas consumption, and enhances system safety. This feature is ideal for maintaining consistent performance across various materials.

Air Compressor

Air Compressor

The air compressor is an optional configuration that provides a consistent and reliable air supply for optimal laser-cutting performance. Designed to deliver high-pressure, clean air, it enhances cutting speed and quality, while preventing contamination of sensitive components. Ideal for high-volume operations, it ensures efficient and continuous machine performance.

Safety Light Curtain

Safety Light Curtain

The safety light curtain is an optional configuration that enhances operator safety by creating an invisible barrier around the machine. It detects any unintended entry into the cutting area, instantly halting operations to prevent accidents. This feature ensures compliance with safety standards while maintaining high productivity and machine protection.

Product Applications

The VIE-T laser cutting machine is a versatile solution for both metal sheet and tube cutting, making it suitable for a wide range of industries. It excels in:
  • Metal Fabrication: Precision cutting of components and structures from sheet metal and tubes for manufacturing machinery and industrial equipment.
  • Automotive: Cutting automotive parts such as exhaust pipes, frames, and chassis components.
  • Aerospace: Ideal for high-precision cutting of metal parts used in aircraft and aerospace applications.
  • Energy: Perfect for cutting pipes and tubes for the oil, gas, and renewable energy industries.
  • Construction: Fabricating beams, supports, and other steel structures for commercial and residential buildings.
  • Furniture & Decoration: Cutting intricate designs for modern furniture and decorative metal elements.
