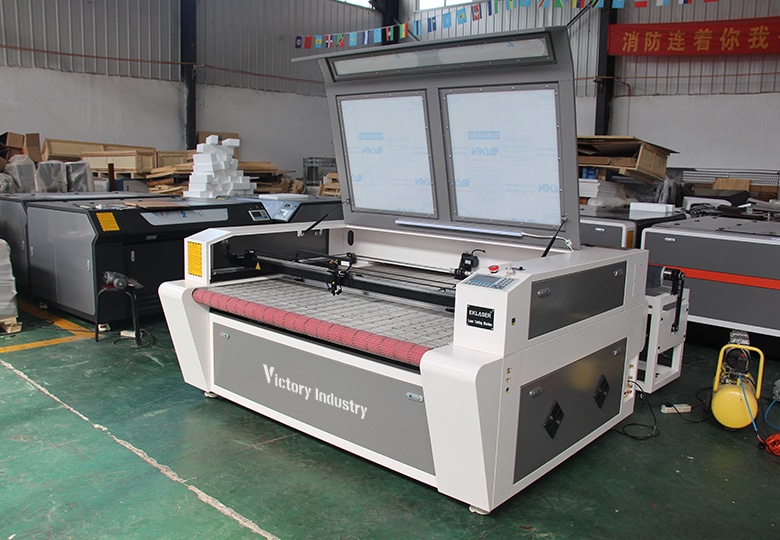

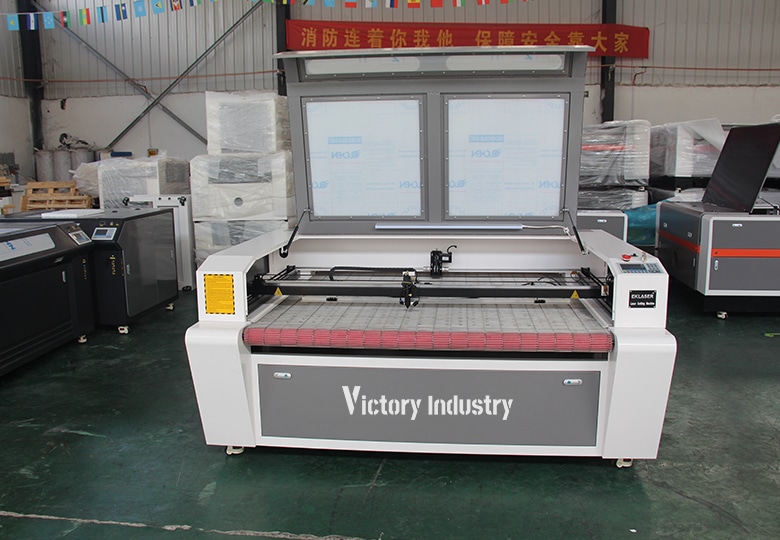

VIC-C Laser Cutting Machine

The VIC-C laser cutting machine is a high-performance CO2 laser cutting machine designed for precision cutting and engraving of acrylic, wood, plastic, and more, featuring advanced technology and enhanced accuracy.
VIC-C Laser Cutting Machine

$4,500.00$9,000.00

Table of Contents

Product Description

The VIC-C laser cutting machine is a cutting-edge CO2 laser cutting machine designed for precise and efficient cutting and engraving of a wide range of materials. Equipped with an advanced CO2 laser cutting head and a high-performance CO2 laser tube, this machine delivers exceptional cutting power and accuracy. The precision linear guide system ensures smooth motion, while the high-precision stepper motor provides reliable and accurate movement during operation. The efficient belt drive system ensures fast cutting speeds without sacrificing precision, optimizing overall performance.
The aluminum blade worktable provides a stable and durable surface, supporting both small and large materials. The enhanced CCD camera offers superior alignment and material positioning, further improving the machine’s cutting accuracy and ease of use. With its advanced control system, the VIC-C laser cutting machine allows for seamless integration into your workflow, offering precise control over the cutting process. This machine is ideal for industries that require high-quality, intricate cuts, such as signage, artwork, fabric, and industrial applications. Whether you are working with wood, acrylic, or other materials, the VIC-C laser cutting machine ensures a clean, smooth finish every time.

Product Configuration

Advanced CO2 Laser Cutting Head

Advanced CO2 Laser Cutting Head

The advanced CO2 laser cutting head offers exceptional precision and versatility, delivering high-quality cuts across a wide range of materials. Featuring advanced optics and automated focus control, it ensures consistent, clean cuts with minimal distortion. Ideal for complex applications, it enhances performance and reduces operational costs, ensuring long-term reliability.

High-Performance CO2 Laser Tube

High-Performance CO2 Laser Tube

The high-performance CO2 laser tube delivers powerful, consistent laser output for precise cutting and engraving. Designed for durability and high efficiency, it ensures stable performance over extended periods. With excellent beam quality and energy conversion, this laser tube provides optimal cutting speeds and exceptional results on a variety of materials.

Precision Linear Guide

Precision Linear Guide

The precision linear guide ensures smooth and accurate motion during the cutting process, minimizing friction and enhancing stability. Designed for high-speed operations, it provides exceptional precision and durability, reducing wear and tear. This feature guarantees consistent performance and long-term reliability, ensuring optimal cutting quality and efficiency in demanding applications.

High Precision Stepper Motor

High Precision Stepper Motor

The high-precision stepper motor offers exceptional control and accuracy, ensuring smooth, precise movement during the laser-cutting process. With its advanced technology, it delivers consistent positioning, reducing errors and improving cutting quality. This motor enhances machine performance, providing high-speed operation with superior reliability for demanding industrial applications.

Efficient Belt Drive System

Efficient Belt Drive System

The efficient belt drive system ensures smooth, high-speed movement with minimal friction, enhancing cutting precision and reducing energy consumption. Designed for durability and low maintenance, it delivers reliable performance even in high-demand environments. This system improves overall machine efficiency, providing fast, accurate cuts while extending the lifespan of critical components.

Aluminum Blade Worktable

Aluminum Blade Worktable

The aluminum blade worktable provides a durable and stable surface for precise cutting operations. Designed with high-strength aluminum, it ensures minimal wear and deformation over time. Its optimized structure supports various materials, promoting excellent cutting accuracy and efficiency. Lightweight yet robust, it enhances overall machine performance and long-term reliability.

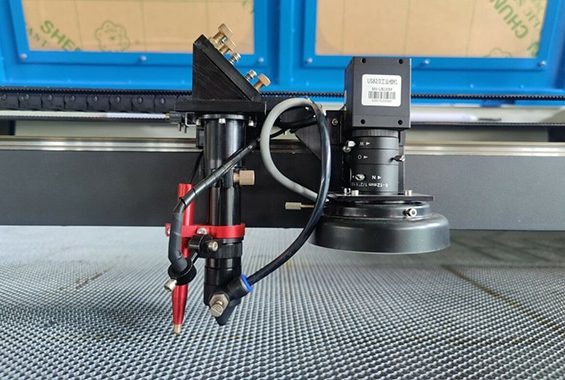

Enhanced CCD Camera

Enhanced CCD Camera

The enhanced CCD camera provides superior real-time monitoring of the cutting process, ensuring precise alignment and high-quality results. With its high-resolution imaging, it helps operators easily detect and correct any misalignment or defects. This feature enhances cutting accuracy, reduces errors, and improves overall workflow efficiency, especially for complex designs.

Advanced CO2 Cutting Control System

Advanced Control System

The advanced control system integrates cutting-edge software and hardware to optimize the laser-cutting process. With intuitive user interfaces and real-time adjustments, it ensures precise control, enhancing cutting speed and quality. This system improves operational efficiency, reduces errors, and offers advanced features for complex tasks, making it ideal for high-performance applications.

Product Features

  • Advanced CO2 Laser Cutting Head: Delivers high-precision cutting and engraving, ensuring clean, smooth edges on a variety of materials, from wood to acrylic and more.
  • High-Performance CO2 Laser Tube: Provides reliable, long-lasting power for consistent cutting performance, offering high output power for efficient and accurate results.
  • Precision Linear Guide: Ensures smooth and precise movement of the cutting head, reducing vibrations and improving the overall accuracy of the cutting process.
  • High-Precision Stepper Motor: Offers superior control and accuracy, allowing the machine to operate with fine detail for complex designs and intricate cuts.
  • Efficient Belt Drive System: Maximizes cutting speed without compromising precision, ensuring a fast yet accurate cutting process, especially for large production runs.
  • Aluminum Blade Worktable: Provides a stable, durable surface for the material being cut, ensuring that even heavy materials are securely supported during the cutting process.
  • Enhanced CCD Camera: Improves material alignment and positioning, enhancing accuracy and ease of operation for intricate and detailed cuts.
  • Advanced Control System: Offers a user-friendly interface for precise control over the cutting process, making it easier to execute complex designs and manage multiple cutting tasks efficiently.

Technical Parameters

Model VIC6040C VIC9060C VIC1390C VIC1610C VIC1318C VIC1325C VIC1530C
Working Area 600*400mm 900*600mm 1300*900mm 1600*1000mm 1300*1800mm 1300*2500mm 1500*3000mm
Laser Type CO2 Laser
Working Table Knife Table or Honeycomb Table
Laser Power 80-600W
Power Supply 220V/50HZ, 110V/60HZ
Min Line Width ≤0.15mm
Position Accuracy 0.01mm
Repetition Accuracy 0.02mm
Cutting Speed 150mm/s
Control System Ruida (USB Interface)
Graphic Format Support PLT, DXF, BMP, JPG, AI, etc

Optional Configuration

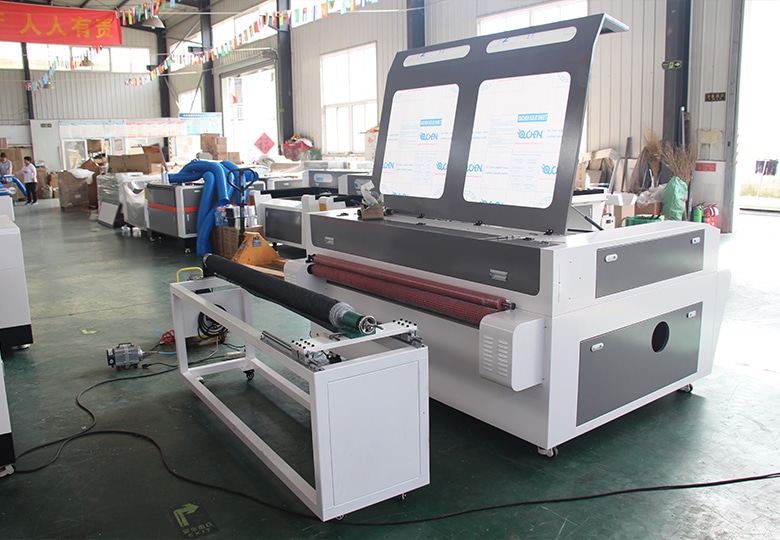

Rotary Attachment

Rotary Attachment

The rotary attachment is an optional configuration that allows the CO2 laser cutting machine to cut cylindrical and round materials with precision. Perfect for processing tubes, pipes, and other curved surfaces, it expands the machine’s capabilities, providing versatility for custom applications and ensuring consistent, high-quality results across a variety of shapes.

Industrial Water Chiller

Industrial Water Chiller

The industrial water chiller is an optional configuration that provides reliable cooling for the CO2 laser cutting machine’s components, ensuring consistent performance during extended use. It helps maintain optimal temperature levels, preventing overheating and reducing the risk of damage. This feature improves cutting precision, enhances machine longevity, and minimizes downtime.

Exhaust System

Exhaust System

The exhaust system is an optional configuration designed to efficiently remove fumes, dust, and gases generated during the CO2 laser-cutting process. It helps maintain a clean, safe working environment by improving air quality and ensuring compliance with safety regulations. This system enhances machine performance and operator comfort during operation.

Gas Supply System

Gas Supply System

The gas supply system is an optional configuration that provides a steady and controlled flow of gases, such as oxygen, nitrogen, or compressed air, to the CO2 laser cutting machine. It ensures optimal cutting conditions, improves material quality, and enhances cutting efficiency, making it essential for achieving precision and high-quality results.

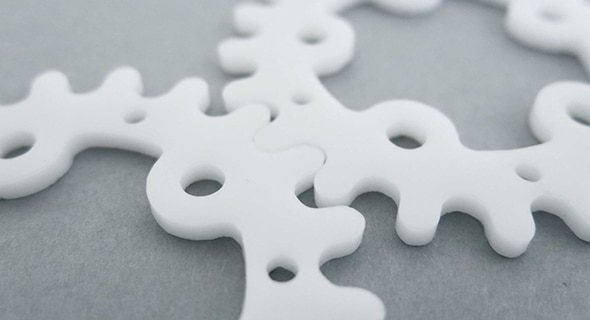

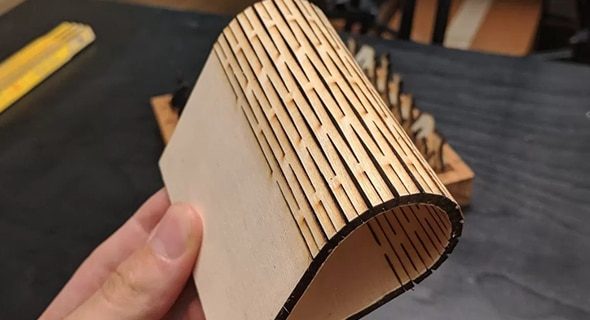

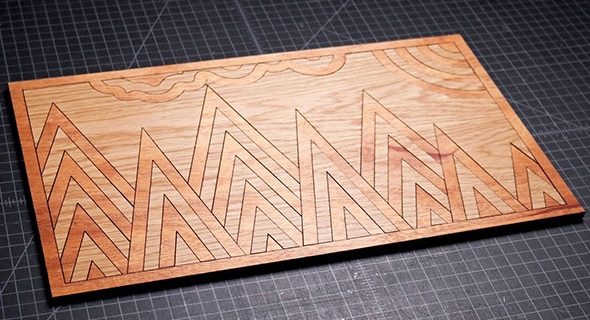

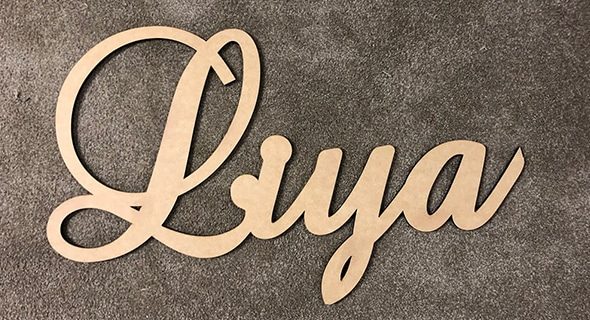

Product Applications

The VIC-C laser cutting machine is ideal for a wide range of industries requiring precision cutting and engraving. Its advanced CO2 laser technology makes it perfect for cutting materials such as acrylic, wood, leather, paper, rubber, and plastic, making it a versatile tool for the signage, craft, and packaging industries. The machine’s high accuracy and speed are also highly beneficial in the electronics sector for cutting PCBs and other delicate materials. Additionally, the VIC-C laser cutting machine is suited for prototyping, model making, and architectural designs, where intricate details and fine cuts are essential. With its advanced CCD camera for material alignment, the VIC-C laser cutting machine excels in applications that demand high precision and repeatability, providing reliable and consistent results for both small and large production runs.
Plasma Cutting VS Laser Cutting
Plasma Cutting VS Laser Cutting
Plasma Cutting VS Laser Cutting
Plasma Cutting VS Laser Cutting

Why Choose Us

Precision Cutting

Our machines deliver clean, accurate cuts every time, whether you're working with carbon steel, stainless steel, or other metals. You can count on perfect results with minimal waste.

Fast and Efficient

Victory Industry laser cutting machines are designed for speed. They cut faster, helping you get more done in less time without compromising on quality.

Cost-Effective

Our laser-cutting machines are energy-efficient and easy to maintain, helping you save money in the long run. Plus, the precise cuts reduce material waste.

Easy to Use

You don’t need a laser expert to operate our laser-cutting machines. They feature a simple interface, making them easy to set up and use.

Reliable Support

Our team is always here to help. We provide installation, training, and support to ensure your machine works smoothly.

Built to Last

Our laser cutting machines are made with durable materials, ensuring long-lasting performance, even with heavy use.
